Description:

PS-104F is a malfunction detection device with four channels of the contact detection method for the press machine. The jack method is used for detection-input terminals of all channels in front of the panel.

Features:

With the toggle switch, the input polarity of all channels is immediately switchable to A or B.

If the timing signal is input, CH1 turns to the synchronous detection method.

The power supply of an electronic sensor can be provided from the 3-contact jack to CH1.

Remote resetting is available by connecting the external reset.

Turning off the power supply switch of PS-104F can prohibit the press machine from continuously operating if the continuous inhibition output is connected.

The stop outputs are two systems (CH1/2 and CH3/4).

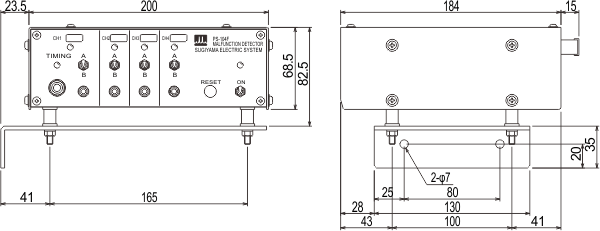

Dimensions:

PS-104F

Back view:

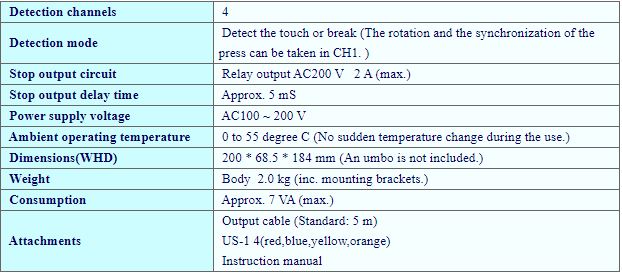

Specification:

Optional sensor:

Spring sensor
