By SUGIYAMA ELECTRIC SYSTEM
Description:
PS-101T is a safety device of one channel used for the exhaust confirmation of the miss feed detection or the product.
Features:
| The timing signal from the press, both the limit switch and the adjacent switch are also possible. | |
| Two functions are installed in the Passage detection unit. | |
| The timing signal circuit is equipped with the timing timer function. |

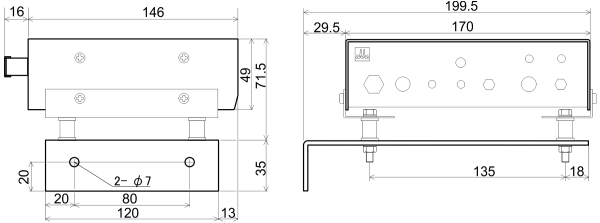

Dimensions:
PS-101T

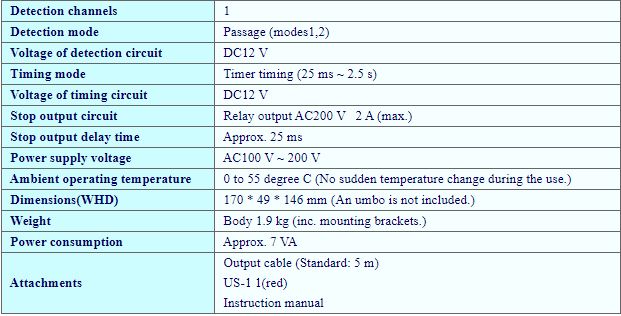

Specification:
.JPG)
Optional sensor:
| Light sensor (OS series) | Light sensor (LS series) | |
 |
 |
|
| Loop sensor | Spring sensor | |
 |
 |
|
| Acoustic sensor | ||
 |
|
