Malfunction Detector PS-682

  1. Home
  2. Malfunction Detector PS-682


By SUGIYAMA ELECTRIC SYSTEM

Description:

The Malfunction Detector “PS-682” detects the status of automatic pressing, such as material shortage, material feeding, discharge of processed goods, and outputs a stop signal to the press in case of trouble.
Several functions using timing signal, such as counting, calculation of work rate, error recording, will assist you in production control.
PS-682 supports Ethernet to connect with a personal computer or PLC.
It employs DIN connector and remotely operable light sensor can be used. Since a voltage of 12V or 24V is outputted, a 24 V sensor can be used as well as conventional light sensor.

Features:

While the features of our “PS-661/662” remain as they are, the following features are added.

 Improvement of operability by LCD
  • - Detecting method can be freely set for all channels.
  • - Total counter, preset counter and setting values can be seen at a glance.
  • - Work rate and SPM are indicated.
  • - Allowance angle is indicated (patent pending).
  • - Displaying the number of counts of extraction.
  • - Displaying an error information.
 Provided with helpful functions for production control
  • - Up to 99 patterns can be registered.
  • - A record of up to 500 errors and counter outputs can be saved.
  • - Calling pattern by ID tag (optional) is available.
 Ethernet supported
  • - The setting or the like in HTML format can be checked.
  • - The saved record can be downloaded in CSV format.
  • - Various types of setting and operation are available through Telnet communication.
  •  (communicate via PLC)
 Enhancement of sensor feature
  • - The sensitivity of OS series can be adjusted by addition of communication line.
  • - Detection will be ON automatically or it gives stop output when it gets sensor input while detection is ON.
  • - Various types of sensor can be used, because a voltage of 12V or 24V is outputted.







Dimensions:

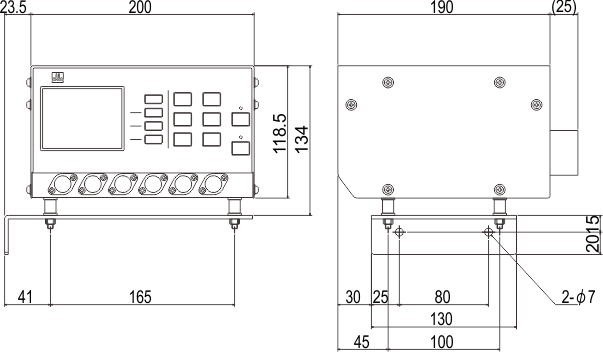

PS-682

Back view:

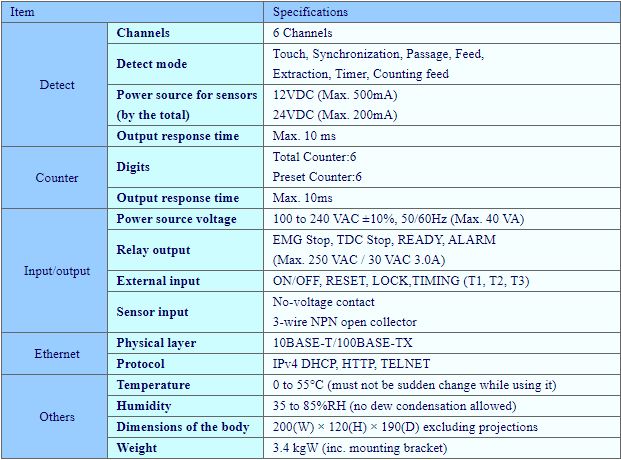

Specification:

DIN-plug conversion cable:

PS-682 is adopting new connector differ from conventional product.

It is necessary DIN-plug conversion cable to PS-682 to use the sensors used for conventional product.DIN-plug conversion cable is provided when select 「01」 at the order code of accessory of sensor of PS-682.It is possible to purchase only DIN-plug conversion cable.The color and cable length of DINP-1J are fixed.
If you need to change the color or cable length of DINP-1J, please place an order by USE-DE series.

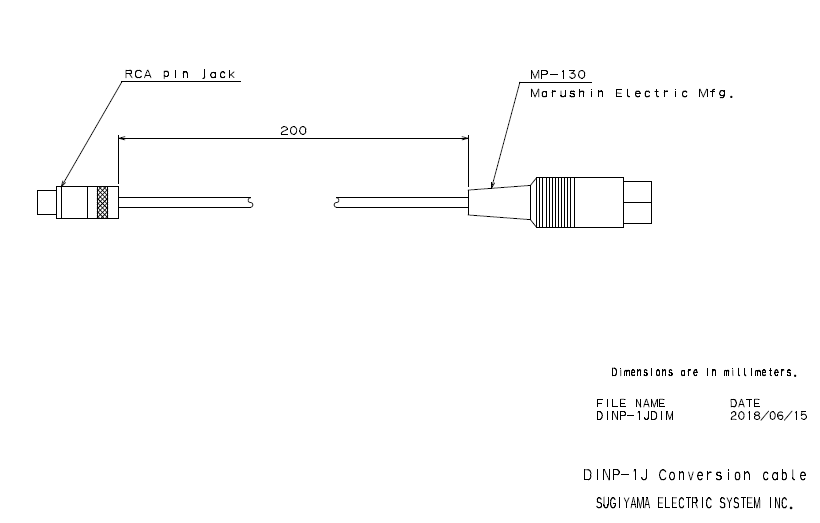

DINP-1J(White)(Pin - DIN conversion cable)
DINP-1J(白)

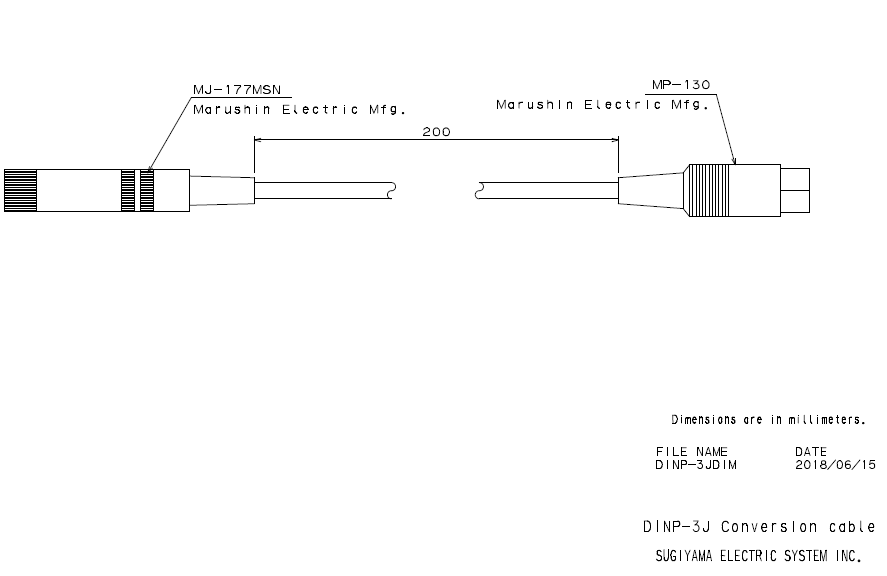

 DINP-3J(Black)(3-pole plug - DIN conversion cable)
DINP-3J(é»’)

Optional sensor:

 Light sensor (OS series)    Light sensor (LS series)
Light sensor
 		   Light sensor

 Loop sensor    Spring sensor
Loop sensor
 		   Spring sensor

 Acoustic sensor
Acoustic sensor
