NCR220C

Home
NCR220C

By EQUIPMENT FOR AUTOMATION

Features:

â— Reduced maintenance frequency

Reduce maintenance frequency and costs by reducing the number of highly durable parts and consumables.

â— Improved operability

You can start operating immediately by simply setting the feed length and speed digitally.

â— External control

Provides communication functions and model number management loader required for external control.

â— Timer function

The release operation starts when the release signal turns on and ends at the set time. Valid during setup changes.

â— Communication function

Model number management - Easy setting of feeding conditions -

Feeding conditions for each mold can be stored in a PLC (Programmable logic controller),computer,etc.,and feeding conditions can be set simply by transferring the date when changing molds.

Multi-feed - Combine multiple conditions into one -

One cycle is data in which the feed length,speed,and number of repetitions of the operation are set as one step(up to 15 steps), and flexible feeding is possible by repeating the operation.

Centralized control - feeder and main device work together -

The communication function and remote (feeder control via signal line) allow the feeder to be controlled from the main device such as a press machine.

â— Loader for model number management

Feed conditions for single feed and multi feed can be managed for each mold.

Can be set/memorized for up to 50 models each (100 models in total).

Stored feeding conditions can be recalled and transferred to the feeder.

Integrated frame made of cast aluminum

Control panel:

Application example:

Hoop material feeding for automated lines such as press machines and automatic assembly machines
I want to increase productivity by increasing SPM
Iwant to send material with a long feed length.

NC roll feeder ordering instructions:

1: Material runout detection is a function that detects the presence or absence of feed material without contact using a photoelectric sensor installed on the introduction roller and outputs an emergency stop signal.
2: Remote is a function that allows you to control the feeder from an external device. If you select [W] or [V], the function options [A], [B], [C], and [E] cannot be selected.
3: Models with remote [W] switch can be controlled (single feed operation, slow forward motion, slow backward motion) by operating the attached remote switch.
4: With remote [V] cable, it is possible to control (single feed operation, slow forward motion, slow backward motion) and switch the linked [ON/OFF] state using an external signal.
5: The following functions are realized by communicating with external devices.
(1) Model number management function
(2) Multi-feeding function [Example: Repeatedly feeding sets of different feed lengths (20mm - 2 times, 45mm - 3 times, 55mm - 2 times)]
6: With the PLC communication function, it is possible to operate under the feeding conditions set in the device memory without installing communication software. (RS422 communication) function The optional PLC communication functions [A], [B], and [C] include the [Remote [V] (with cable)] function and cable.
7: A loader for model number management and a loader cable are included.
8: [E] Model number management function (serial communication specification) allows setting of feeding conditions through communication (RS232C) with external devices such as PLC and personal computer.
[E] Model number management function (serial communication specification) includes the [Remote [V] (with cable)] function and cable.

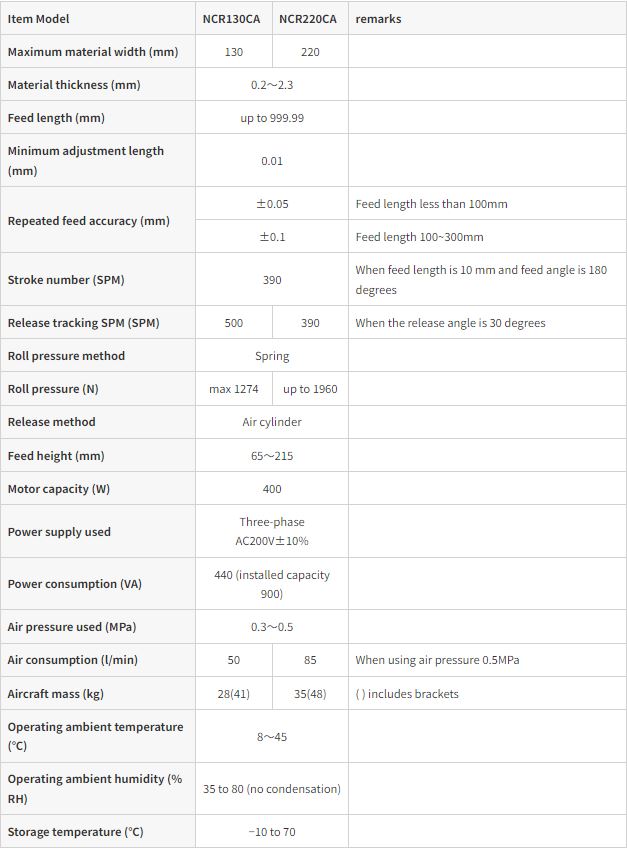

Specification:

Repeated feed accuracy and stroke number are values â€‹â€‹under test conditions determined by our company. Depending on the material, mold, peripheral equipment,
and feed conditions, the specification range may not be met.
If you are using thin and soft materials such as film or paper, please contact us.

Maximum number of strokes for material specification and feed length

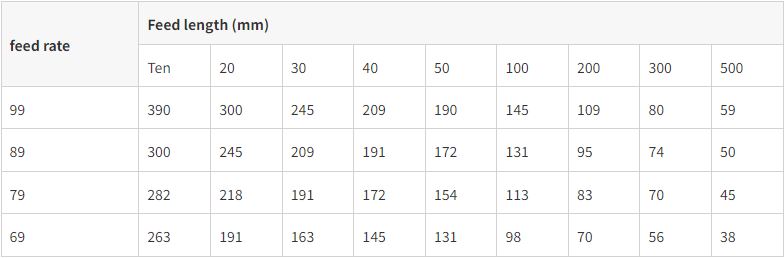

Maximum follow-up stroke number(SPM) for feed length
