By SATSUKI KIZAI

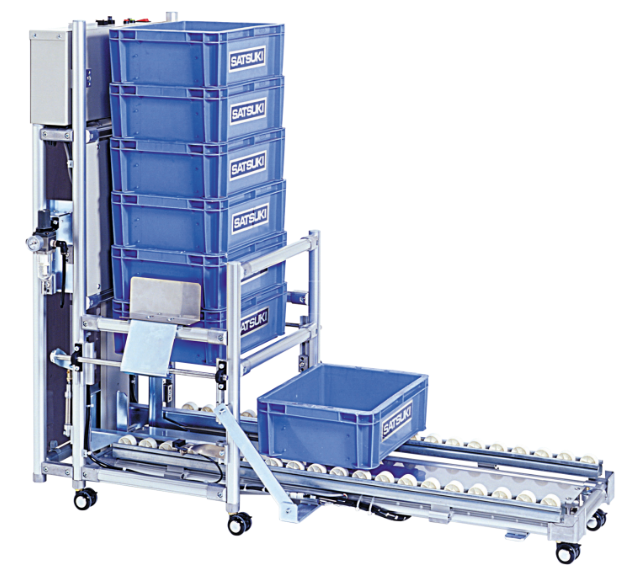

ED=II (M.L)

It is the best device for the production for small parts such terminals, battery parts, springs.

It is useful for early detection of defective product because it is possible to control small-quantity production for each case.

Product Features:

1. When the preset quantity is reached, empty cases (commercially available) are automatically replaced from the bottom case,enabling "unmanned operation for a long time" and "quantity management". (Some errors may occur in quantity control)

2. Easy to operate. Automation improves work efficiency.

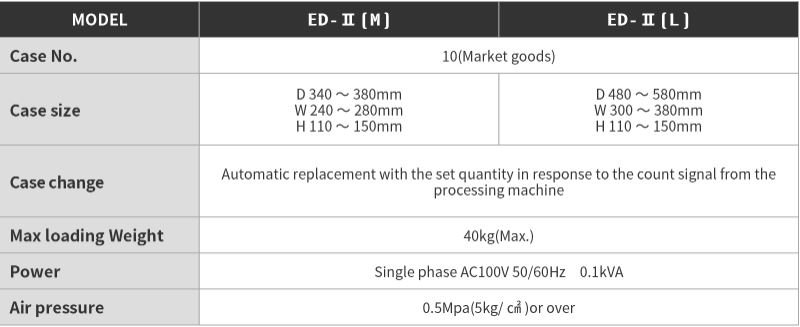

Standart Specifications:

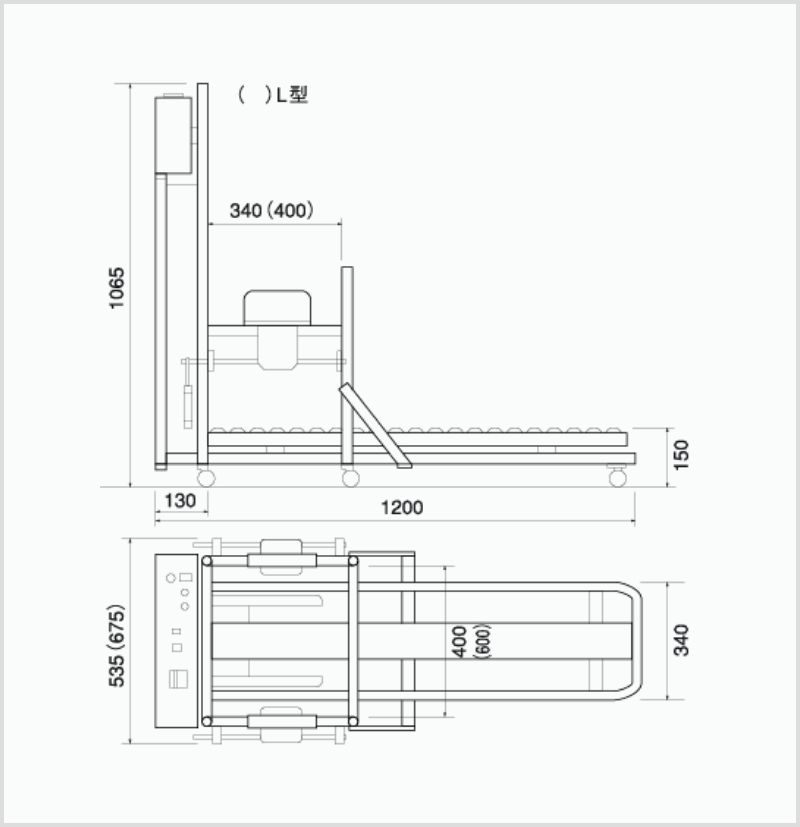

Outline drawing:

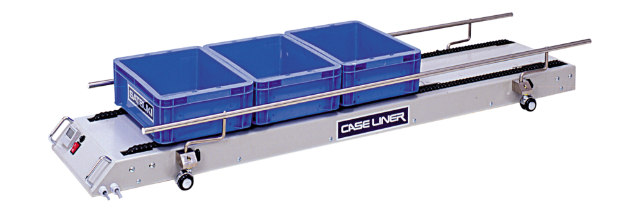

ES

It is the best device for the production for small parts such terminals, battery parts, and springs.

It is useful for early detection of defective product because it is possible to control small-quantity production for each case.

Product Features:

1. When the preset quantity is reached, three containers (commercially available product) slide in sequence and are replaced,enabling "long-term unmanned operation" and "quantity management". [Quantity management may have some errors]

2. Easy to operate. Automation improves work efficiency.

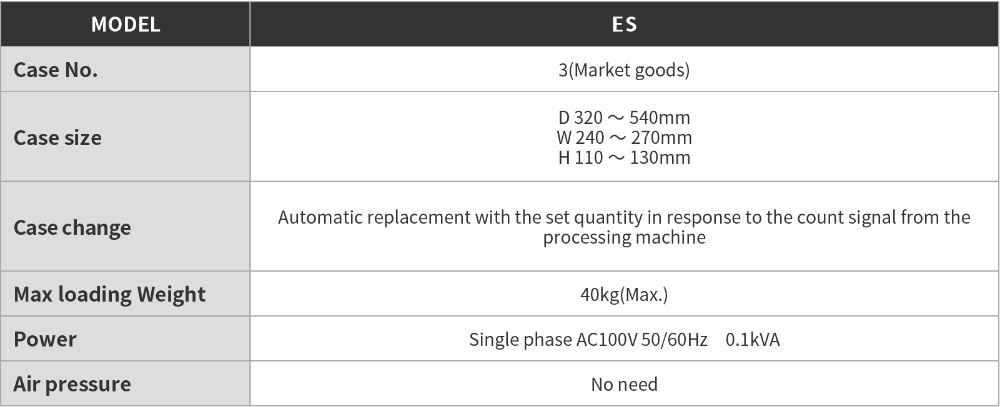

Standart Specifications:

• Please contact us for special specifications.

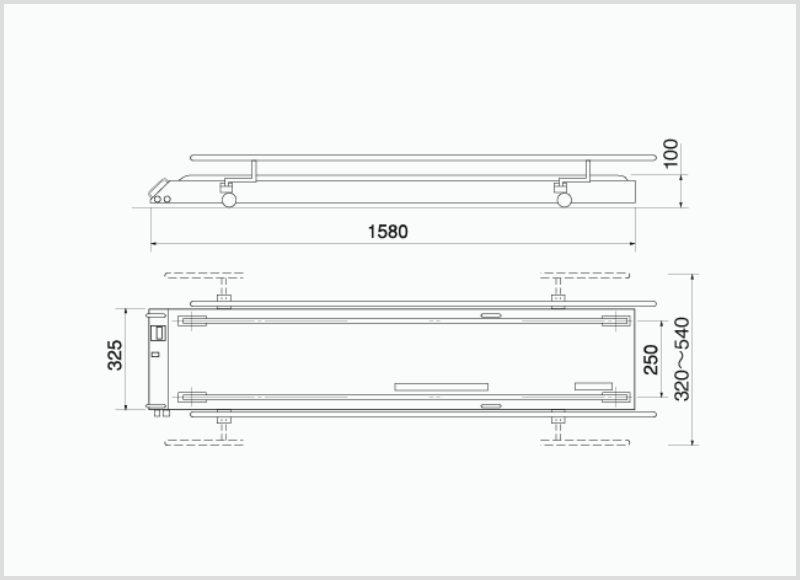

Outline drawing:

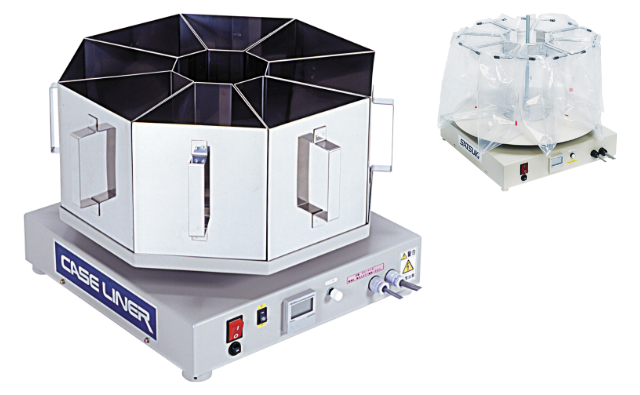

ET-8 (S.M.L)

It is the best device for the production for small parts such terminals, battery parts, and springs.

It is useful for early detection of defective product because it is possible to control small-quantity of each case [or plastic bag].

Product Features:

1. When the preset quantity is reached, the set 8 empty cases [stainless steel product with handles] or plastic bags rotate and replace,enablong "long-time unmanned operation" and "quantity management'. [Quantity management has some errors]

2. Easy to operate. Work efficiency improves with automation.

3. We also accept consultations on changing case specifications and quantity.

Standart Specifications:

Outline drawing:
