AUTO-TURNTABLE T SERIES
T-600 • 700 • 900 • 1100 • 1300
Japan's first coil material horizontal stacking type uncoiler
In 1983, we developed Japan's first electronically controlled continuously variable transmission coil material horizontal stacking type uncoiler. Since then, we have continued to improve based on the delivery record of about 10,000 units and accumulated know-how, and realized further labor saving.
Product Features:
1. The coil material can be set on the table while it is on the pallet.
2. Costs can be reduced by improving work safety,efficiency,labor saving, and space saving.
3. It always automatically follows the line speed with stepless speed change.
Standart Specifications:
Outline drawing:
AUTO-TURNTABLE TL SERIES
TL-700 • 900 • 1100
Tensionless and smooth supply is possible. Does not damage the metal mold.
Ideal for stamping ultra-precision parts such as ultra-small pitch connector terminals.
Since no tension is applied to the material,it is safe for the metal mold.
Product Features:
1. The ray type loop controller constantly detects the slack [feed amount] of the material and automatically follows the line speed and sends it out.
2. Eliminates adverse effects such as vibration generated during press working, and is safe for metal mold.
3. It can be set close to the press machine,and the table top also serves as a material storage area, so it can be effectively used even in a small factory.

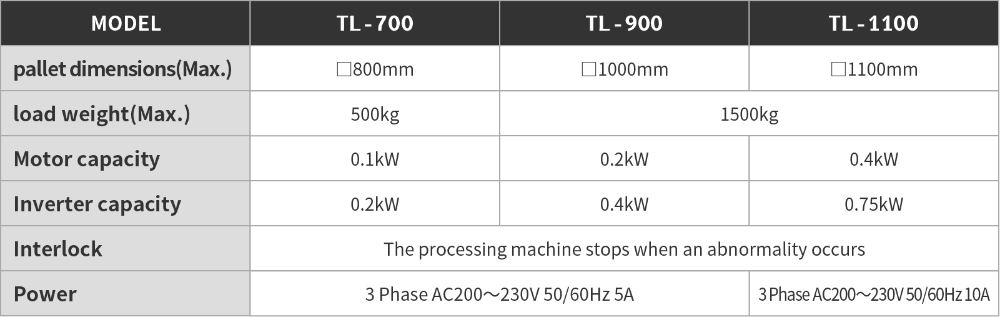

Standart Specifications:

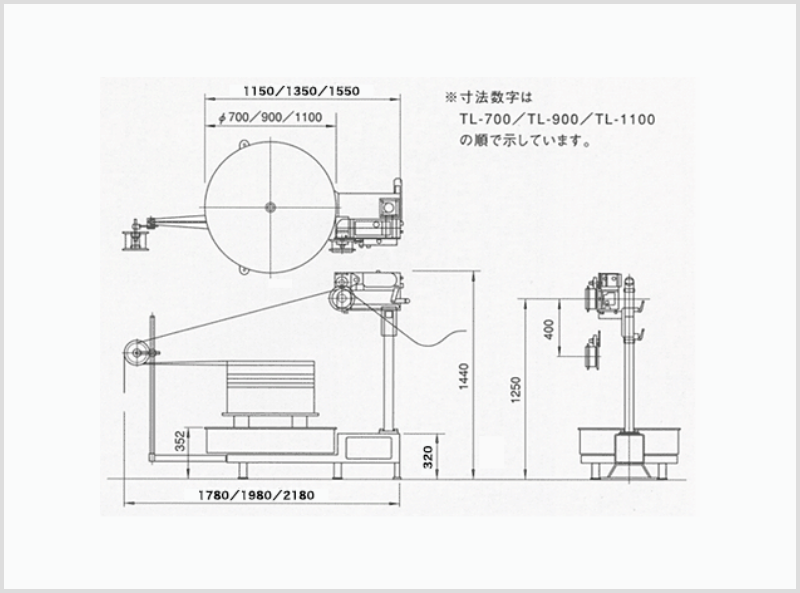

Outline drawing:

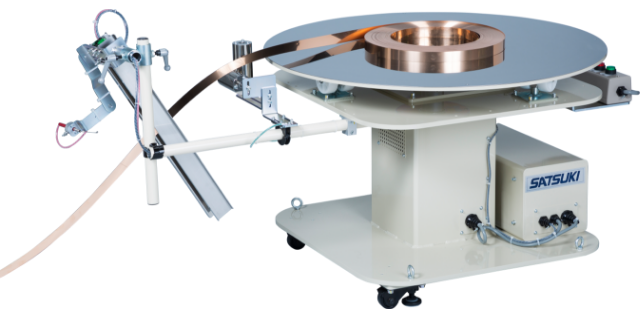

TENSIONLESS AUTO-TURNTABLE TTL SERIES
TTL-900
Lower cost and tensionless. Achieves smooth supply.
The loop controller detects the material feed amount, and inverter control follows the line speed with stepless speed change.
Product Features:
1. Since the material is not tensioned, the mold is not damaged.
2. Detects loop abnormalities with a touch sensor.
3. Easy to move with casters with adjuster pad.
Standart Specifications:

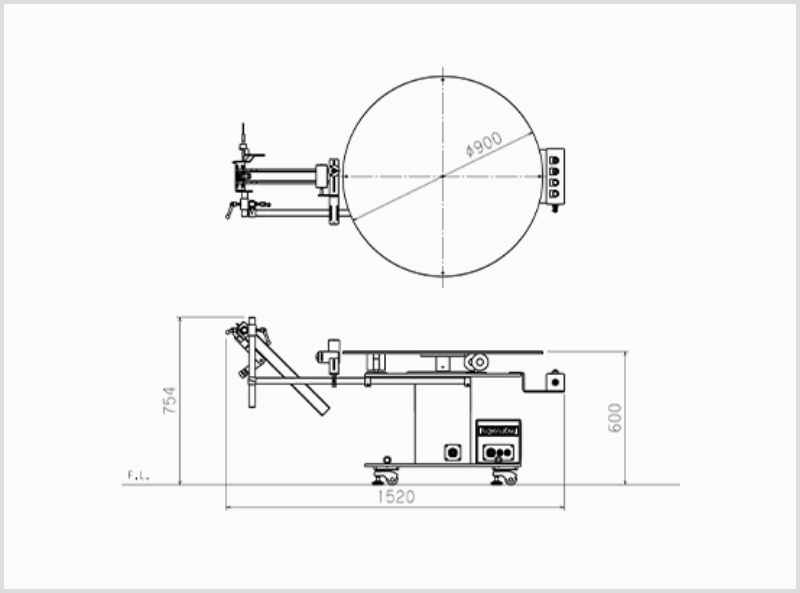

Outline drawing:

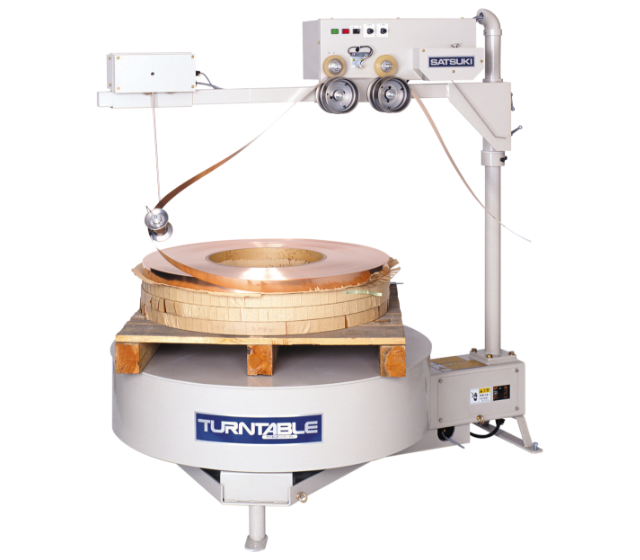

MULTI TURNTABLE MU SERIES
MU-900 • 1100
Both hoop material and welding coil material can be used.
Unmanned operation is possible for a long time by using a welded coil material.
Both general hoop material and welding coil material can be used, and no tension is applied to the material and the mold is not damaged.
Product Features:
1. The ray type loop controller constantly detects the slack [feed amount] of the material, and the original material feed device automatically followa the line speed and feeds it.
2. Even surface-treated materials such as plating will not be scratched.
3. Eliminates adverse effects such as vibration generated during press working,and is safe for metal mold.
Welding coils [multi-coils.J-PAC] are made by stacking several layers of hoop materials,welding the inside and inside, the outside of each coil, and marking the welded parts.

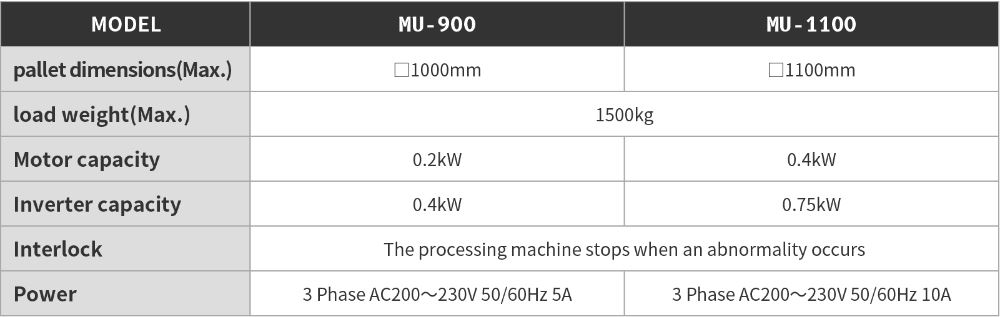

Standart Specifications:
Outline drawing:
MU-1100-2 • 1300-2
Both hoop material and welding coil material can be used.
Unmanned operation is possible for a long time by using a welded coil material.
The loop controller detects the material feed amount, and the inverter control follows the line speed with stepless speed change.
Product Features:
1. Coil material can be set on each of the upper and lower two-stage tables and can be fed out with two lines .
2. When used as a single linesends out, the coil material can be fed alternately from the two tables, improving the efficiency of material replacement.
3. Work safety, efficiency, and space saving can be realized.
Standart Specifications:
Outline drawing [MU-1300-2]:
.png)
TRAVERSER TR SERIES
TR-963
Uncoiler for traverse materials. Enables long-term unmanned operation of the press machine.
.png)
An uncoiler that can operate a press machine unattended for a long time and is suitable for the production of precision parts such as connector terminals and relays. Hoop material can also be used using the attachment sold separately.
Product Features:
1. With the "rau loop controller" and "specially structured feeder",the material feeding speed is always synchronized with the press.
2. Even thin and narrow plated materials can be fed out without damage.
3. Free size drum outer diameter from φ600mm to φ900mm
4. Easy operation to attach/detach the drum by simply turning the mounting handle..
5. A special attachment [sold separately] is used for the hoop material.
Standart Specifications:
◼︎ Table attachment
Outline drawing:
AUTO-TURNTABLE FOR WIRE ROD TW SERIES
TW-700 • 900 • 1100 • 1300
Both carrier material and bundle material can be used,and there is no deformation such as "stretching" or "twisting" during feeding.
Unwinds smoothly without applying excessive tension to the wire. The material feed direction can be either right feed or left feed.
Product Features:
1. It automatically follows the speed of the processing machine and enables stable feeding.
2. It automatically follows the line speed with stepless speed change by inverter control.
Standart Specifications:
Outline drawing:
WINDER TYPE UNCOILER ME SERIES
MEF-11U
Both Ideal for supplying primary processed products. Multi-type that can set the reel position horizontally, vertically, and tilted.
Smooth feeding in the tension-less to supply to the secondary processing, and at the same time winding up interlayer paper.
Product Features:
1. The reel position can be set horizontally,vertically, and tilted according to the required feeding such as secondary processing and inspection.
2. The ray type loop controller always detects the product, and the product is always feed smoothly with stepless speed change.
3. Emphasis on low cost and space saving.
Standart Specifications:
Outline drawing:
MEH-11U
Ideal for supplying primary processed products, At the same time as the product is feed without tension, the interlayer paper is wound up.
The ray loop controller constantly detects the product and automatically follows the line speed without applying tension.
Product Features:
1. Ideal for supplying primary processed products for secondary processing and inspection .
2. It always automatically follows the line speed with stepless speed change.
3. Emphasis on low cost and space saving .
Standart Specifications:
Outline drawing:
MEH-22U
Ideal for supplying primary processed products. Since it is a dual-purpose machine, it can be fed out as needed with either 1 or 2 lines.
The ray loop controller constantly detects the product and automatically follows the line speed without applying tension.
Product Features:
1. Ideal for supplying primary processed products for secondary processing and inspection.
2. It is tensionless and smoothly feeds out, and at the same time, the interlayer paper is also wound up.
3. It always automatically follows the line speed with stepless speed change.
Standart Specifications:
Outline drawing:
